AAEquipment Tire Scanner Pairing
This is a
hand scanner to scan the tyres. They have an API through which Claire can
import data.
Activating AAEquipment Tire Scanner Pairing
Follow
these steps to activate it:
- Navigate to https://launch-europe.eu/bigdata/login/login.php
- Login with Card S/N and Card code
- Click on TTM113 settings

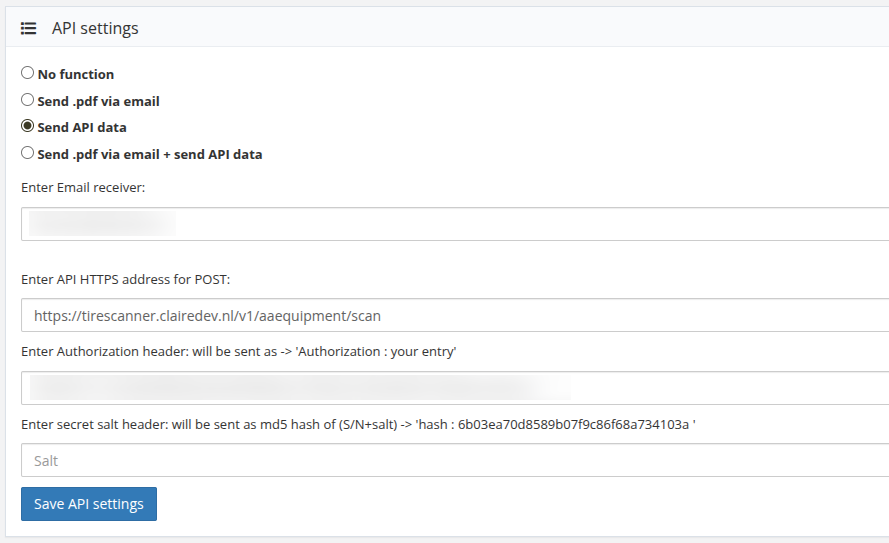

- Navigate to API settings and fill in the following information:
- Select Send API data
- Email receiver not needed
- Under Enter API HTTPS address for POST add: https://tirescanner.claireit.com/v1/aaequipment/scan
- Salt can be left empty
- Then click Save API settings
- Send the serial number of the tyrescanner(s) to support@claireit.eu
We can add
up to 5 different tyrescanners per location.
Support will provide the corresponding number for the scanner. Make sure that the scanner is correctly labeled.
How it works

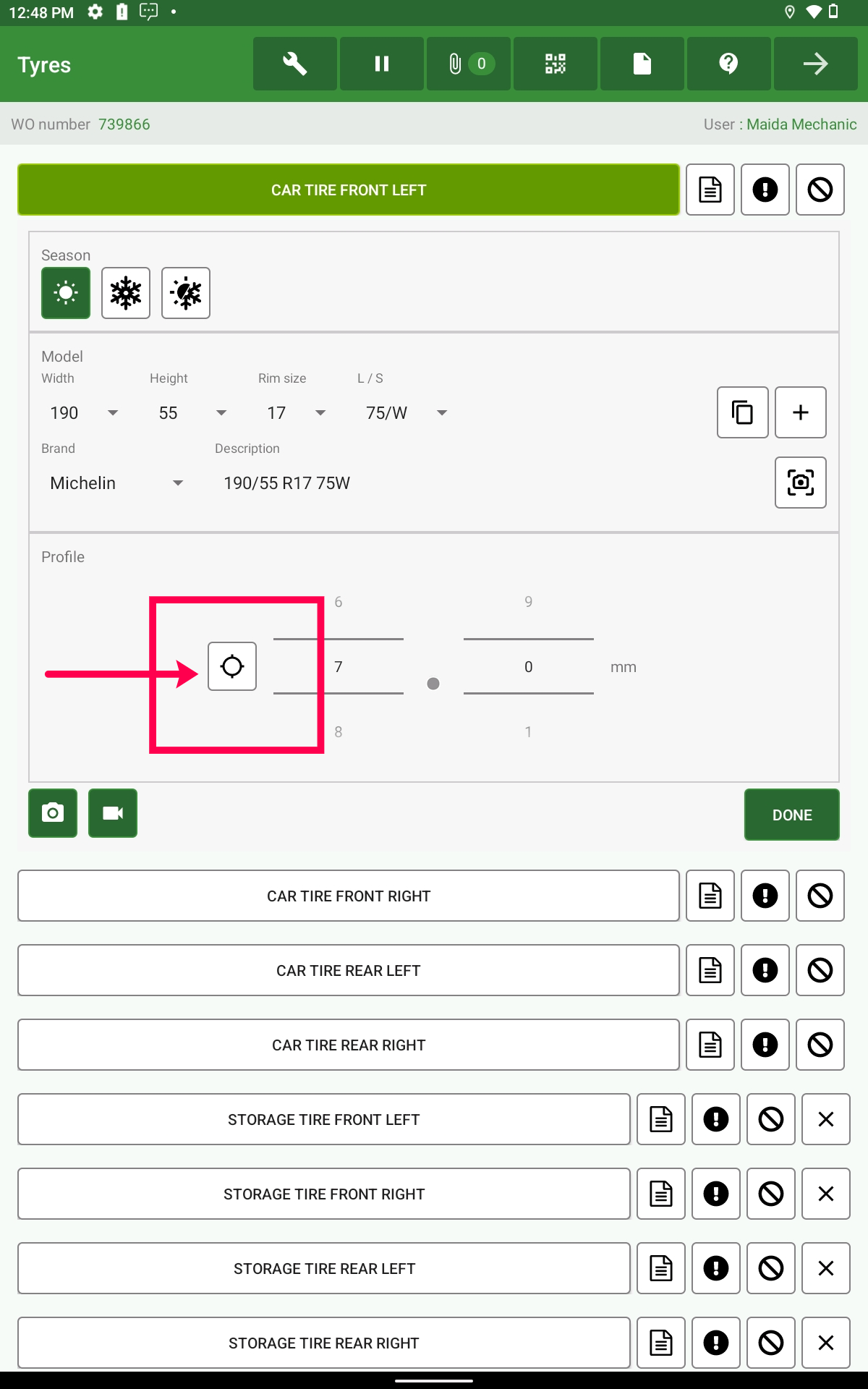

When you
get to the tyre question during a checklist, a new button is available.

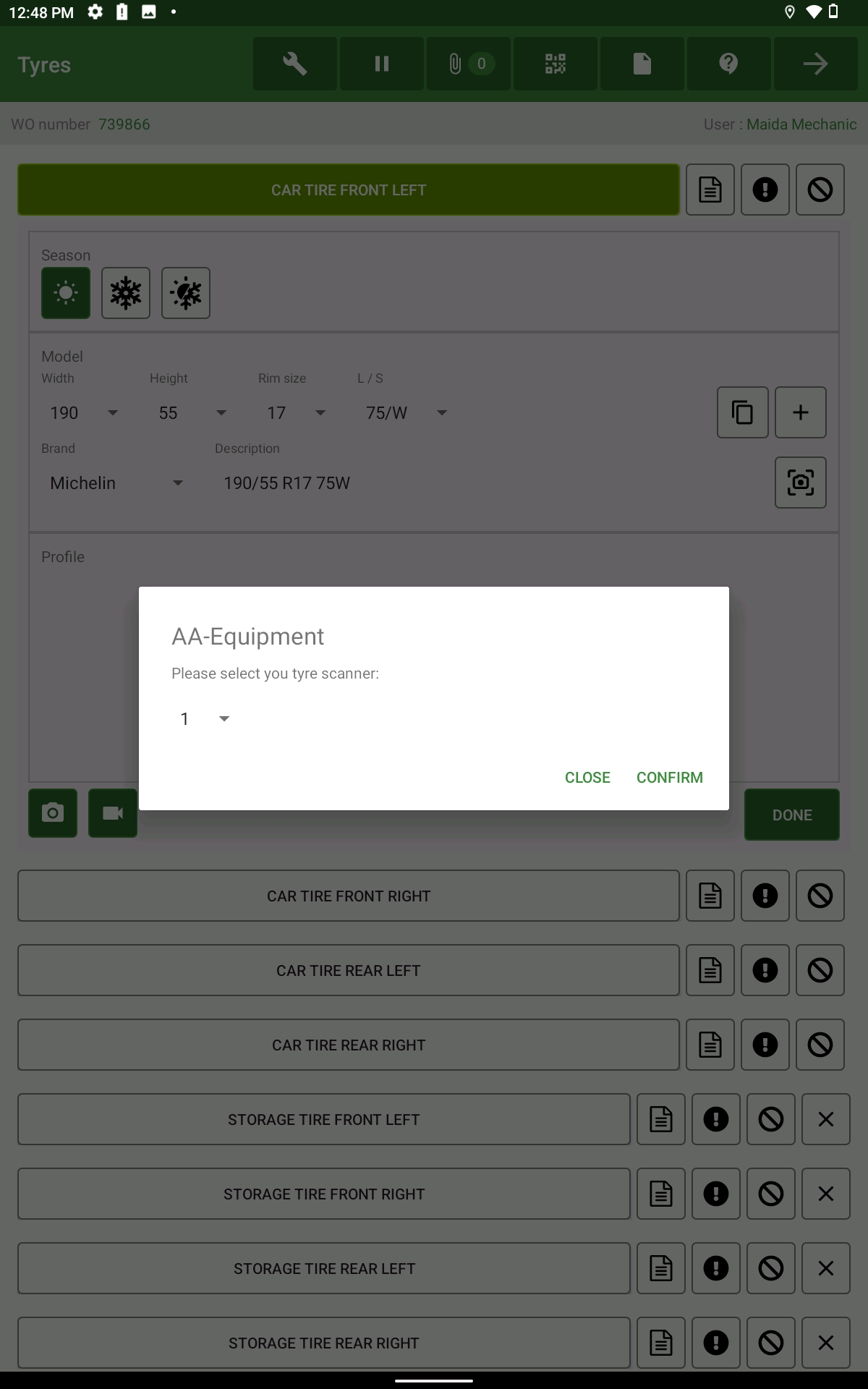

Once you
click on it, the AAEquipment pop-up will open, allowing the Tire Scanner to be
selected by number.
If no scanner is registered a message will pop-up.
Then you
will have the message that the tyre scan is awaited. The scan results will
appear and a confirmation is asked if you want to apply them.
By
clicking the Confirm button, you approve the scanned results, and the PDF
received by the Tire Scanner will be displayed on the Appointment Detail page
under the Notes section.
Click on
the attachment icon to download the PDF file.
